Úvod » DA převodníky » Musical Fidelity MX-DAC

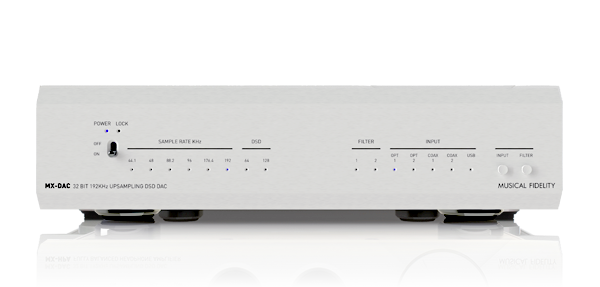

Musical Fidelity MX-DAC

stříbrný




Číslo produktu: 911
Výrobce: MUSICAL FIDELITY
Barevné provedení: Stříbrný
naše cena bez DPH : 19 744 Kč
naše cena s DPH (21 %):
23 890 Kč

do košíku:
  ks

MX-DAC - Specifications

DAC Structure

  • Sample rate converter: SRC4392 up-sampling data to 192kHz
  • Digital to Analogue converter: PCM1795 32 bit / 192kHz Multi-bit Sigma-Delta type

Performance

  • Output Voltage: 2 Volts RMS single-ended (RCA)
  • Output Voltage: 4 Volts RMS balanced (XLR)
  • PCM THD: <0.002%
  • PCM THD (+ noise): <0.003%
  • DSD THD: <0.003%
  • DSD THD (+ noise): <0.006%
  • PCM Frequency Response: –3dB, 2Hz to 90kHz
  • PCM Frequency Response: –3dB, 2Hz to 40kHz
  • Channel Separation: -110dB

Capabilities

  • Coaxial Inputs: S/PDIF up to 24 bit / 192kHz
  • Optical Inputs: S/PDIF up to 24 bit / 192kHz

Inputs

  • 2x RCA coaxial connector SPDIF 32-192 kbps
  • (16-24 bit stereo PCM)
  • 2x TOSLINK optical connector 32-192 kbps
  • (16-24 bit stereo PCM)
  • 1x USB type ‘B’ connector
  • Asynchronous data stream at up to 24-bit/192kHz PCM as well as DSD64 and DSD128
  • (Determined by source file/computer settings)

Outputs

  • 1x line level RCA (single-ended)
  • 1x XLR Male sockets (balanced) to EIA RS-297-A
  • General
  • Dimensions - WxHxD (mm): 220 x 53 x 215
  • Weight (unpacked / packed): 1.9Kg / 2.4Kg
  • Power Consumption: <0.25 Watts standby, <1 Watt max.

Supplied Accessories

  • 1x 5v / 2A DC power supply (90-250VAC universal worldwide supply)
  • Windows driver CD
  • User manual
